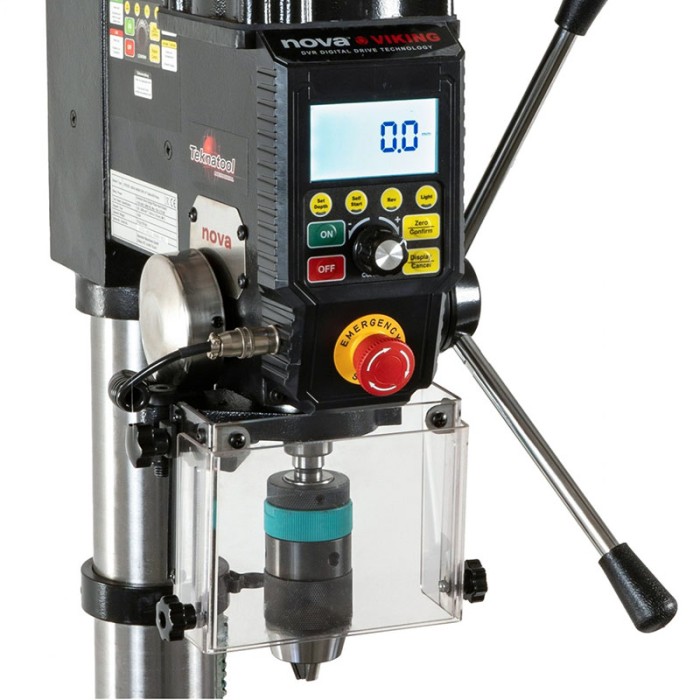

Nova Viking DVR 16" namizni steberni vrtalni stroj

Tehnični podatki:

  • Tip motorja: DVR direktni pogon (brez jermena)
  • Moč: 1 KM (750 vatov)
  • Premer delovnega ombočja: 16" = 406 mm
  • Razdalja med stebrom in središčem vrtanja: 203 mm
  • Globina vrtanja (hod vretena): 115 mm
  • Razdalja med vretenom in delovno mizo: cca 321 mm
  • Razdalja med vretenom in podnožjem: cca 575 mm
  • Premer pinole: cca 60 mm
  • Dimenzije (V x G x Š): 1.150 x 525 x 365 mm
  • Dimenzije mize: 320 x 320 mm
  • Delovna miza je vrtljiva in nagibna
  • Hitrost: 150 - 3.000 rpm (nastavljiva na 5.000 rpm)
  • Konus vretena: MK2
  • Razpon vpenjalne glave: 1-16 mm
  • Levo/desno vrtenje
  • Teža: cca 70 kg


Motor:

  • Digitalno nastavljiv motor z magnetnim uporom (DVR)
  • Reluktacijski motor z izhodno močjo 1 HP (priključek 230 V)
  • Območje vrtljajev: 150 - 3.000 rpm; v nastavitvah ga lahko povečate na 5.500 vrt/min





Pillar Drill
Throat depth 203 mm
Depth of feed 115 mm
Chuck to Table 321 mm
Chuck to Base 575 mm
Speeds 150 - 3.000 rpm (with an option up to 5.000 rpm)
Chuck MK2 / 1-16 mm
Machines
Power 750 W / 1HP
General info
Weight 70 kg

Write a review

Please login or register to review

Nova Viking DVR 16" namizni steberni vrtalni stroj

  • Product Code: NEU-DT83703
  • Availability: Per order
  • 1,299.90 €

  • Ex Tax: 1,065.49 €
